| KEY SPECS | |
| ENGINE POWER | 22 HP 16.4 KW |
| OIL CHANGE | NO-TOOLS OIL DRAIN HOSE WITH REPLACEABLE FILTER |
| ENGINE MANUFACTURER/MODEL | 44J6 CYCLONIC |
| TRANSAXLE TYPE | K46 HYDROSTATIC INTEGRATED WITH TRANSAXLE |
| TRANSAXLE CONTROL | TWIN TOUCH™ PEDALS |
| REAR TIRES | 20×10-8 |
| LIFT SYSTEM TYPE | FOOT PEDAL WITH OPTIONAL ADJUSTABLE SPRING ASSIST KIT |
| CUTTING WIDTH | ACCEL DEEP™ MOWER DECK. 42 IN. 107 CM |
| U.S. WARRANTY | 4 YEAR/300 HOUR BUMPER-TO-BUMPER* (*TERM LIMITED TO YEARS OR HOURS USED. WHICHEVER COMES FIRST. AND VARIES BY MODEL. SEE THE LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT AT JOHNDEERE.COM OR JOHNDEERE.CA/TUWARRANTY FOR DETAILS.) |

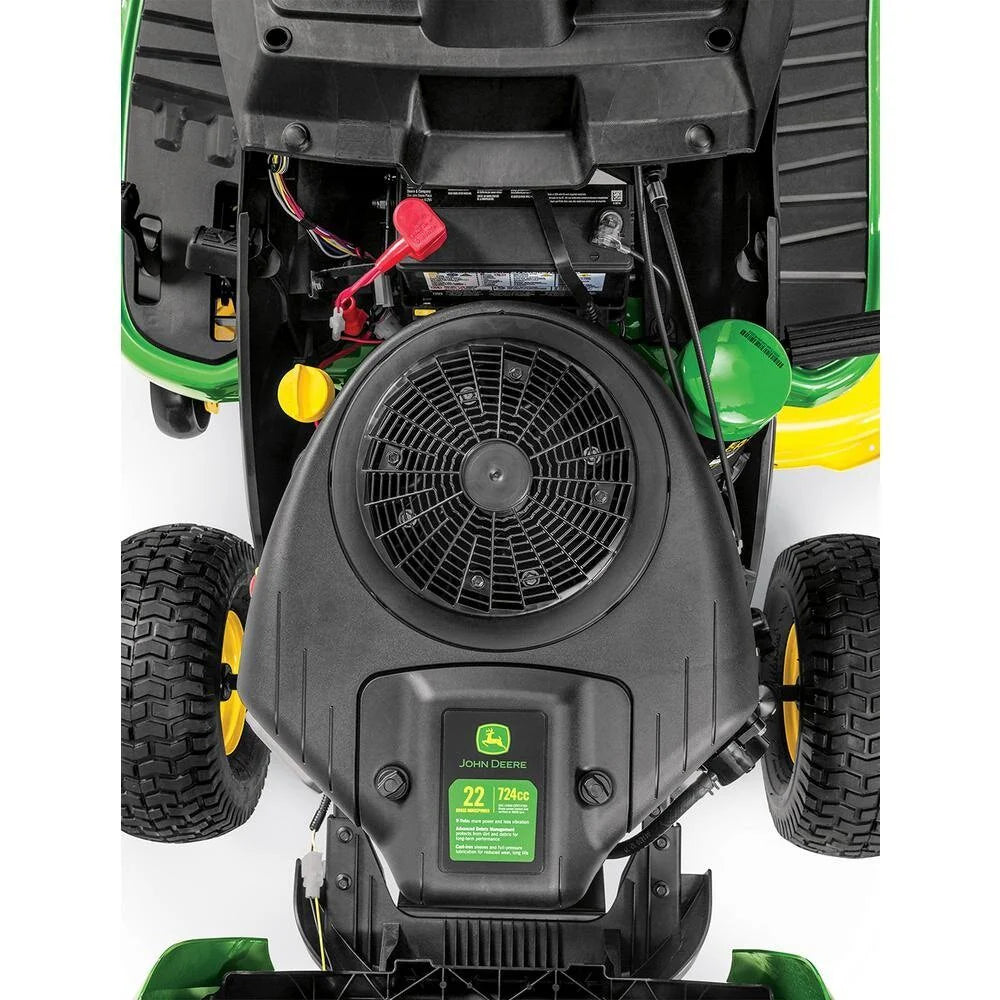

| ENGINE | |
| POWER | 22 HP 16.4 KW |
| DISPLACEMENT | 44.2 CU IN. 724 CC |
| MANUFACTURER/MODEL | 44J6 CYCLONIC |
| TYPE | OVERHEAD VALVE. FULL-PRESSURE LUBE. OIL FILTER |
| CYLINDERS | V-TWIN. CAST-IRON LINERS |
| GOVERNOR | MECHANICAL |
| CHOKE/SPEED CONTROL | SEPARATE LEVERS. AUTOMATIC CHOKE RETURN |
| COOLING METHOD | AIR |
| AIR CLEANER | DRY. REPLACEABLE |
| OIL CHANGE | NO-TOOLS OIL DRAIN HOSE WITH REPLACEABLE FILTER |
| FUEL SYSTEM | |
| TYPE | GASOLINE |
| FUEL DELIVERY | PULSE PUMP. CARBURETOR |
| FUEL GAUGE | GAUGE ON DASH |
| FUEL TANK LOCATION | REAR |
| FUEL FILL OPENING | ON LEFT FENDER. 3 IN. 7.6 CM |
| FUEL TANK CAPACITY | 3.3 U.S. GAL. 12.5 L |
| ELECTRICAL SYSTEM | |
| BATTERY | 12 V 340 CCA |
| CHARGING SYSTEM | FLYWHEEL ALTERNATOR. REGULATED. 14 AMP |
| ENGINE STARTER | BENDIX |
| HOUR METER | YES |
| HEADLIGHTS | TWO STANDARD. INCANDESCENT. 27 W |
| TAILLIGHTS OR REFLECTOR | NO |
| BACKUP LIGHTS | NO |
| REAR WORK LIGHTS | NO |
| 12-V OUTLET | OPTIONAL |
| TRANSAXLE | |
| TYPE | K46 HYDROSTATIC INTEGRATED WITH TRANSAXLE |
| CONTROL | TWIN TOUCH™ PEDALS |
| CRUISE CONTROL | YES. BUTTON ON DASH |
| OIL COOLER | FINS AND FAN ON TRANSAXLE |
| OIL FILTER | INTERNAL. NOT REPLACEABLE |
| DIFFERENTIAL LOCK | NO |
| FORWARD SPEED | 0-5.5 MPH 0-8.9 KM/H |
| REVERSE SPEED | 0-4 MPH 0-6.4 KM/H |
| BRAKES | INTERNAL WET DISC |
| CHASSIS | |
| FRAME | WELDED HEAVY-DUTY |
| PRIMER/PAINT | E-COAT/POWDER |
| WEIGHT BRACKET | STANDARD REAR. OPTIONAL FRONT |
| RECEIVER HITCH | NO |
| FRONT AXLE | CAST IRON FRONT AXLE. FRONT WHEEL BALL BEARINGS |
| SPINDLE BUSHINGS | NO |
| FRONT TIRES | 15×6-6 |
| REAR TIRES | 20×10-8 |
| HOOD MATERIAL | FULLY ENCLOSED. MOLDED-IN COLOR MATERIAL REDUCES SOUND. WILL NOT RUST OR DENT |
| FENDER DECK MATERIAL | STAMPED STEEL |
| FLOOR MATS | SURE-GRIP RUBBER |
| STORAGE | YES. UNDER SEAT AND COVERED TOOLBOX |
| SERVICE INTERVAL DECAL | YES |
| FENDER HANDLES/GRIPS | NO |
| CUP HOLDER | YES |
| EQUIPMENT MOUNTING | YES. HEAVY DUTY |
| MAXIMUM TOWING CAPACITY | 600 LB 272 KG |
| STEERING | |
| TYPE | MANUAL. SECTOR AND PINION |
| FOUR-WHEEL STEER | NOT AVAILABLE ON THIS MODEL |
| STEERING WHEEL | LARGE. 14 IN. 35.6 CM |
| TILT STEERING WHEEL | NO |
| TURNING RADIUS | 16 IN. 40.6 CM |
| UNCUT CIRCLE RADIUS | 26 IN. 66 CM |
| SEAT | |
| TYPE | OPEN-BACK DESIGN WITH GRASP |
| SEAT BACK HEIGHT | 15 IN. 38 CM |
| ARMRESTS | NO |
| FORE-AFT ADJUSTMENT | WHILE SEATED. BALL BEARING SLIDE RAIL. 15-POSITION. 6.6 IN. 17 CM |
| SEAT SUSPENSION | TILT. TWO COIL SPRINGS. THREE-POSITION NO-TOOLS ADJUSTMENT FOR OPERATOR WEIGHT |
| LIFT SYSTEM | |
| TYPE | FOOT PEDAL WITH OPTIONAL ADJUSTABLE SPRING ASSIST KIT |
| HYDRAULIC OUTLETS | NO |

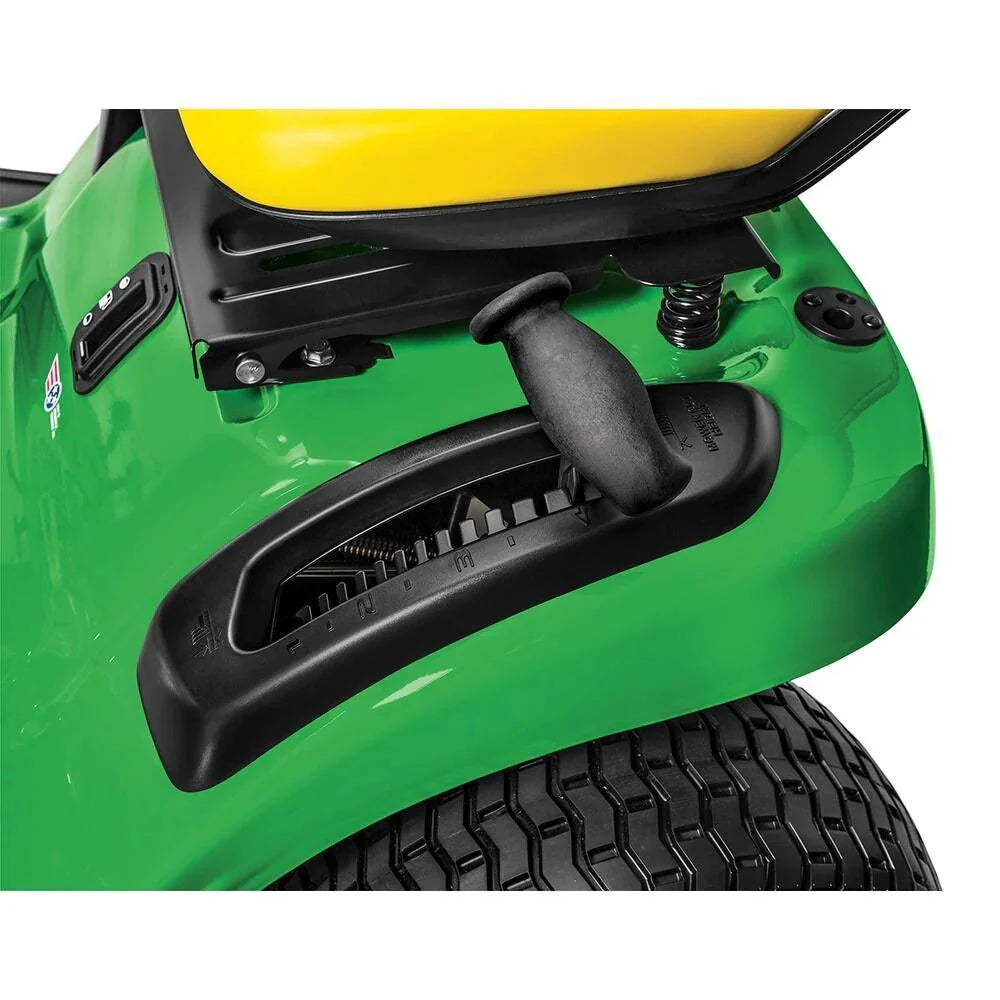

| MOWER CUT HEIGHT | 13 POSITIONS. 1-4 IN. 2.5-10.2 CM |
| CUT HEIGHT INCREMENTS | 0.25 IN. 0.64 CM |
| PRESET CUT HEIGHT | YES |
| MOWER DECK | |
| TYPE | SIDE DISCHARGE |
| CUTTING WIDTH | ACCEL DEEP™ MOWER DECK. 42 IN. 107 CM |
| CONSTRUCTION | STAMPED STEEL DECK SHELL |
| MOWER DECK MATERIAL | 12 GAUGE 0.105 IN. 2.7 MM |
| MOWER WASH PORT | YES |
| MOWER DRIVE SYSTEM | ELECTRIC POWER TAKE-OFF (PTO) CLUTCH. IN-LINE BELT |
| MOWER WHEELS | TWO |
| MOWER WHEEL ADJUSTMENT | FOUR-POSITION. TOOL REQUIRED |
| MOWER LEVEL ADJUSTMENT | EXACT ADJUST PORTS AND ONBOARD DECK-LEVELING GAUGE |
| MOWER ATTACHABILITY | |
| TYPE | SLIDE UNDER TRACTOR |
